Electrical Panel
/
MV Panel
/

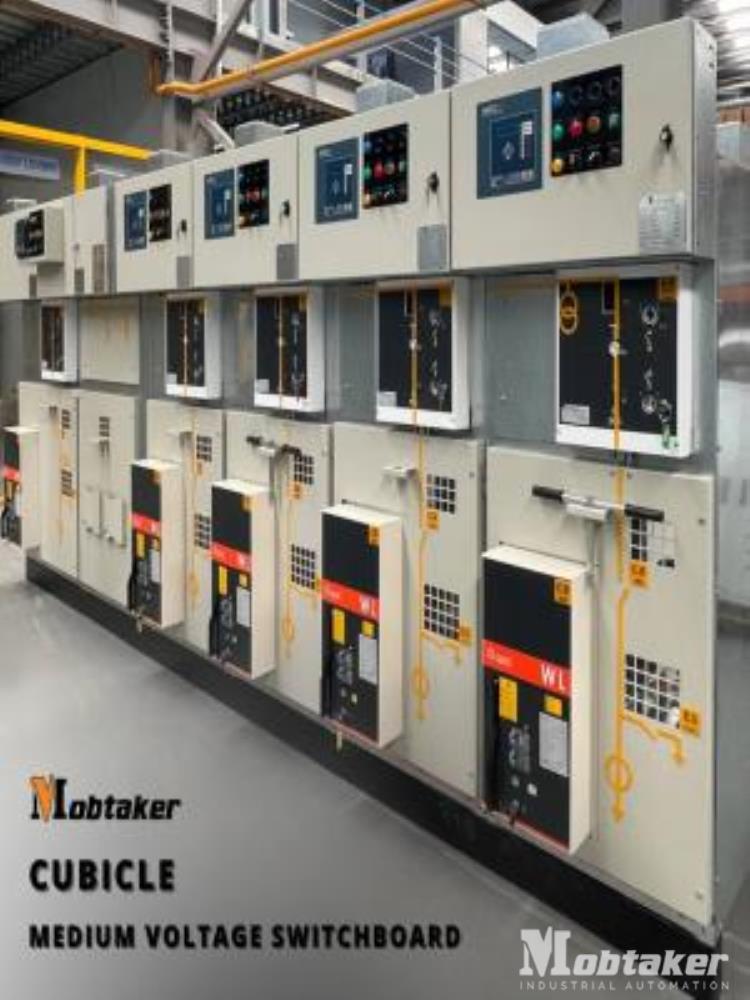

UniMix
UniMix
Back
MOBTAKER ET produces 20 kv panels by enjoying the latest world s knowledge advancements and considerinng the market requirements. Some of the advantages of these new panels, in comparison with the old ones, are:
Reduction in size
Utilizing modern technology
Connectivity to the automation systems
Needing no maintenace during life expectancy period
High degree of safety in operation
Product Details
Electrical Characteristics of UniMix Medium Voltage Switchgear
Rated Voltage
KV
12
17.5
24
Power Frequency Test
KV/min
28
38
50
Impules Withstand Voltage
KV
75
95
125
Main Current of Branch Connections
A
400-630-800-1250
Rated Current of Branch Connections
A
- Circuit Breakers
630-1250
630-1250
630-1250
- Swich Disconnectors
400-630
400-630
400-630
- Isolators
400-630
400-630
400-630
Rated Short-time Withstand Current
KA/1S
12.5-16
20
25
KA/3S
12.5
16
20
Peak Current
KV
31.5-40
50
63
Dimensions of The Panel
Dimensions
width
height
depth
Unit =mm
375-500-750
1950
975
