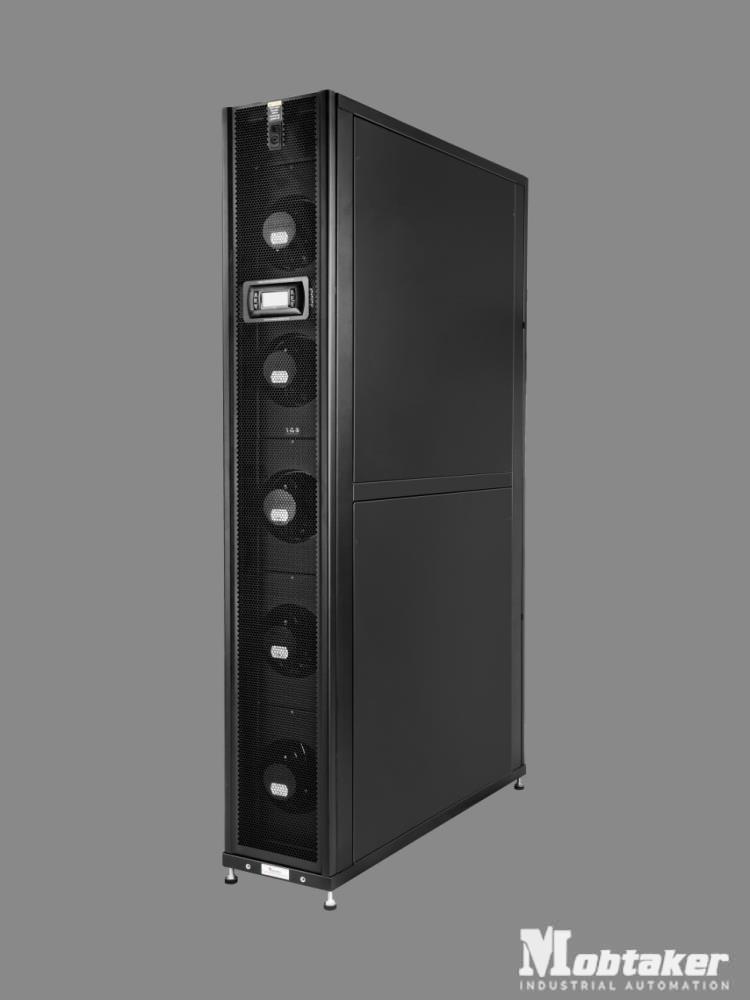

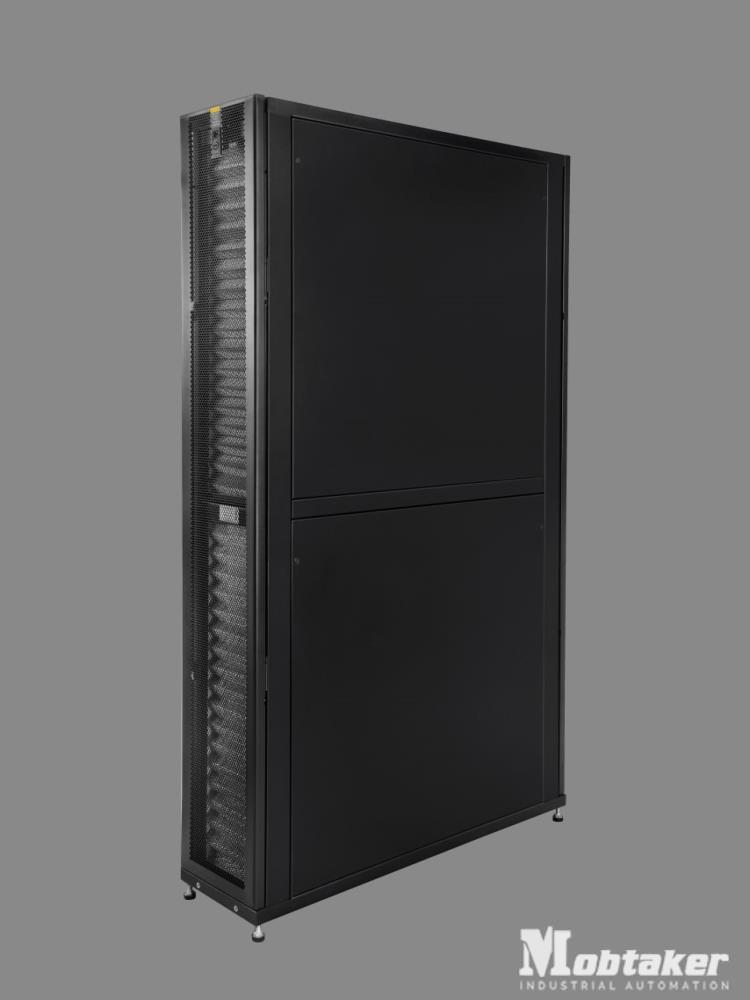

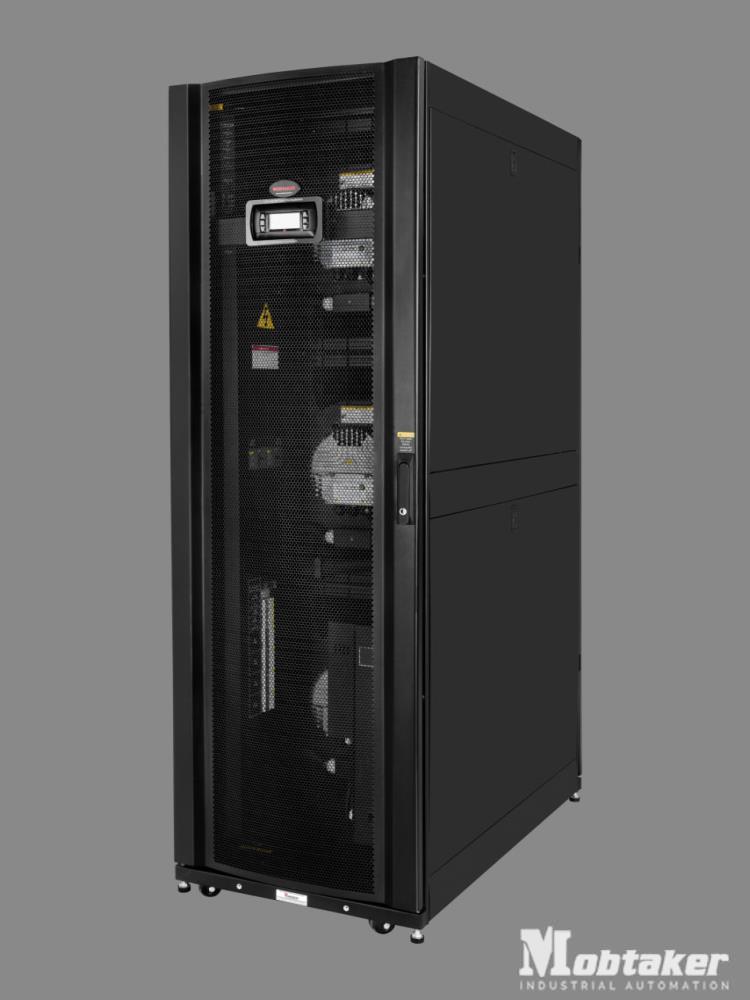

The MID InRows are compatible with the outdoor condenser known
as MCO. The Inrows falling within this category are offered in standard widths
of 30 and 60 cm and in different capacities. The compressor element used in
these products can be of two different types. The first type is fixed-speed
scroll compressors with ON-FF control and the second is BLDC compressors with
variable-speed control. In fact, BLDC compressors provide the InRow system
with an additional control mechanism in order to accurately adapt the cooling
load generated by the cooling system to the load imposed by the data center
equipment. This reduces the response time to temperature adaptation. On the
other hand, the electronic expansion valve and variable-speed fans of InRow
system and condenser will contribute to accurate temperature adaptation.
|
MID 60401
|
MID 30301
|
MID 30201
|
MID 30151
|
|
|
1070*600*2000
|
1070*300*2000
|
1070*300*2000
|
1070*300*2000
|
Size (L*W*H mm)
|
|
41
|
30
|
20
|
16.5
|
Maximum cooling capacity (kw)
|
|
14.1
|
8.9
|
6.2
|
6.1
|
Maximum power consumption (kw)
|
|
V-AC 380-400
|
V-AC 380-400
|
V-AC 380-400
|
V-AC 380-400
|
Voltage
|
|
2
|
5
|
5
|
4
|
Number of fans
|
|
Axial
|
Axial
|
Axial
|
Axial
|
Fan type
|
|
7500(4400)
|
3850(2265)
|
3850(2265)
|
2890(1700)
|
Maximum air flow m3/hr (CFM)
|
|
3
|
No
|
No
|
3
|
Humidifier capacity-optical (kg/hr)
|
|
R410A
|
R410A
|
R410A
|
R410A
|
Refrigerant
|
|
BLDC Rotary
|
BLDC Rotary
|
BLDC Rotary
|
on-off scroll
|
Compressor type
|
|
indoor unit
|
indoor unit
|
indoor unit
|
indoor unit
|
Compressor positian
|
|
electric
|
electric
|
electric
|
electric
|
Expansion valve type
|
|
2
|
2
|
2
|
2
|
Number of filters
|
|
580*445*50
|
910*230*25
|
910*230*25
|
910*230*25
|
Washable G2
|
Filter size (mm)
|
|
580*445*50
|
910*230*50
|
910*230*50
|
910*230*50
|
Pleated G4(optional)
|
|
82
|
72
|
71
|
75
|
Noise level in 1 meter distance (db)
|
|
369
|
201
|
198
|
183
|
Weight (kg)
|
The InRows falling
within this category are compatible with vertical or horizontal type of condenser with comparable capacity. In case of limited access to outdoor
spaces, employers can feel free to choose one of the two models
Specifications
of condensing units
|
Rated InRow
|
Voltage*Power
v w
|
Fan size dia(cm)
|
Size(L*W*H)
(mm)
|
Weight
(kg)
|
Description
|
Model
|
|
MID 30151
|
220*1P-360
|
2*40
|
1310*850*720
|
91
|
15kW vertical
|
MCO 15000
|
|
220*1P -360
|
2*40
|
1310*850*720
|
95
|
15kW horizontal
|
MCO 15001
|
|
MID 30201
|
380*3Ph-828
|
2*50
|
1630*1000*890
|
154
|
20kW vertical
|
MCO 20000
|
|
380*3Ph-828
|
2*50
|
1350*1000*890
|
158
|
20kW horizontal
|
MCO 20001
|
|
MID 30301
|
380*3Ph-828
|
2*50
|
1640*1100*890
|
169
|
30kW vertical
|
MCO 30000
|
|
380*3Ph-828
|
2*50
|
1640*1100*890
|
176
|
30kW horizontal
|
MCO 30001
|
|
MID 60401
|
380*3Ph-1656
|
4*50
|
1930*1200*1390
|
300
|
40kW vertical
|
MCO 40000
|
|
380*3Ph-1656
|
4*50
|
1930*1200*1390
|
312
|
40kW horizontal
|
MCO 40001
|
The most important specifications MID InRows:
Frame structure
made of high strength ST37 metal shee
InRow structure
coated with Electrostatic powder paint (code RAL 9005)
Equipped with
electronic expansion valve
Easy to install
air filters
Hot Swappable Fans
Quick and easy
installation
High energy
efficiency thanks to variable speed fans
Low initial
investment costs
Easy to use
control system and advanced monitoring system
Customizable
dimensions
Professionally
designed structure To easier maintenance
Safe operation
thanks to the temperature, pressure, humidity and water leakage sensors
installed in different parts of the system as well as the reliable Carel control
system.
up and down accessibility for pipes and electricity
Network connection via Modbus protocol as well as BACnet and SNMP protocols
Network
connection via Ethernet and RS485 ports and Rotation of up to 16 InRow units
High-quality
parts with international standards
Different
operation modes
Easy to access the sight
glass from the back door of the device (30 cm wide models) and from the front
door (60 cm wide models)
Replaceable
Filter drier (from the back door of the device)
Proper and
sufficient on-off valves that make Filter drier easy to replace
Sufficient
On-off valves in the cooling circuit used to collect refrigerant inside the
condenser Probable maintenance
Sliding-door power
control panel in 30 cm wide products for easy access to all electrical elements
of the system from the back side of the InRow and hinged-door power control
panel in 60 cm wide products for easy access to all elements from the front door
Leveling feet
Gap filling
Foam
Safety valve
with mounting stand
On-off valve
installed in the path of InRow’s outlet refrigerant
Connecting arm
used to attach the InRow to the Isle floor
The main
connection cable with the corresponding plugins
Hose connecting
the unit to the main drain line
