Outdoor compressor



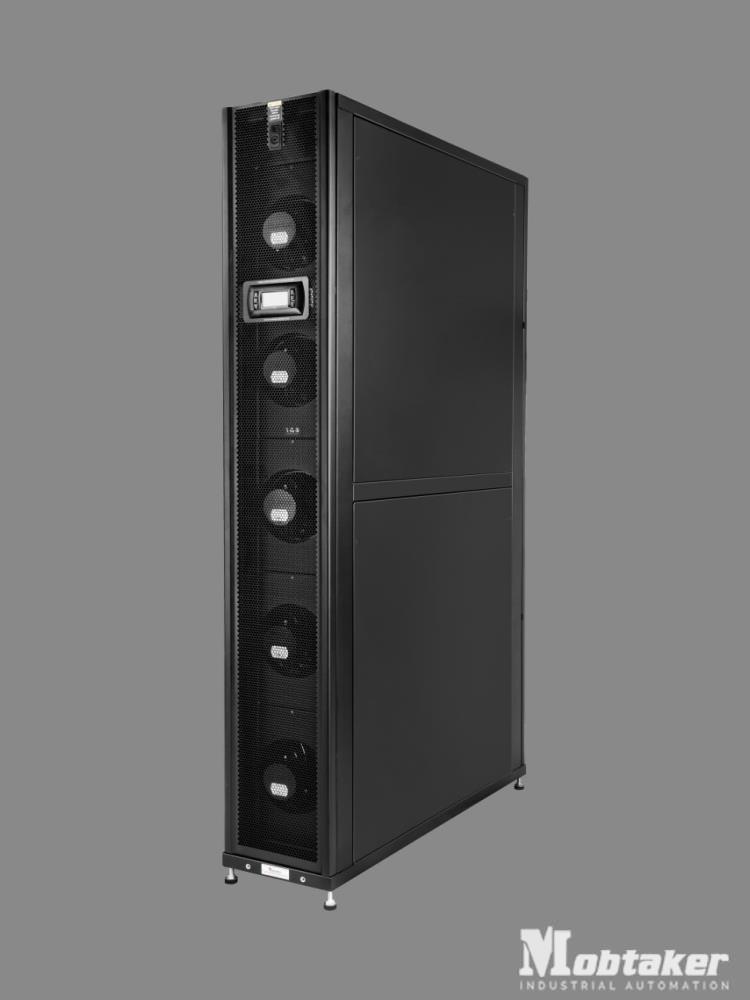

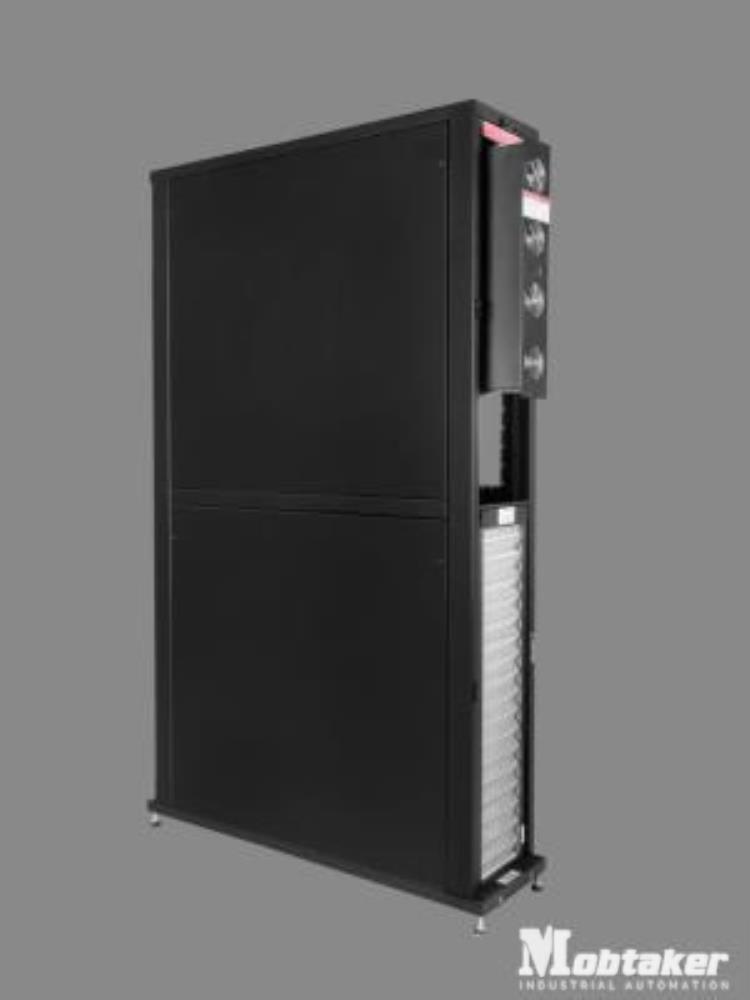

The MCI InRows are compatible with external condensing units which are known as MCU. The InRows falling within this category are offered in different capacities. The compressors used in these products are BLDC type with variable speed drive control that are installed inside the condensing unit. In fact, BLDC compressors provide the InRow system with an additional control mechanism in order to accurately adapt the cooling load generated by the cooling system to the load imposed by the data center equipment. This reduces the response time to temperature adaptation. On the other hand, the electronic expansion valve and variable-speed fans of InRow system and condensing unit will contribute to accurate temperature adaptation.

MCI 30301

MCI 30201



1070*300*2000

1070*300*2000

Size (L*W*H mm3)

30

20

Maximum cooling capacity (kw)

(outdoor unit : 9.4)102

(outdoor unit : 6.7)102

Maximum power consumption (kw)

V-AC 220

V-AC 220

Voltage

5

5

Number of fans

Axial

Axial

Fan type

3850(2265)

3850(2265)

Maximum air flow m3/hr (CFM)

No

No

Humidifier capacity-optical (kg/hr)

R410A

R410

Refrigerant

BLDC Rotary

BLDC Rotary

Compressor type

outdoor unit

outdoor unit

Compressor positian

electric

electric

Expansion valve type

2

2

Number of filters

910*230*25

910*230*25

Washable G2

Filter size (mm3)

910*230*50

910*230*50

Pleated G4(optional)

78

76

Noise level in 1 meter distance (db)

153

141.7

Weight (kg)



Technical specifications of condensing units

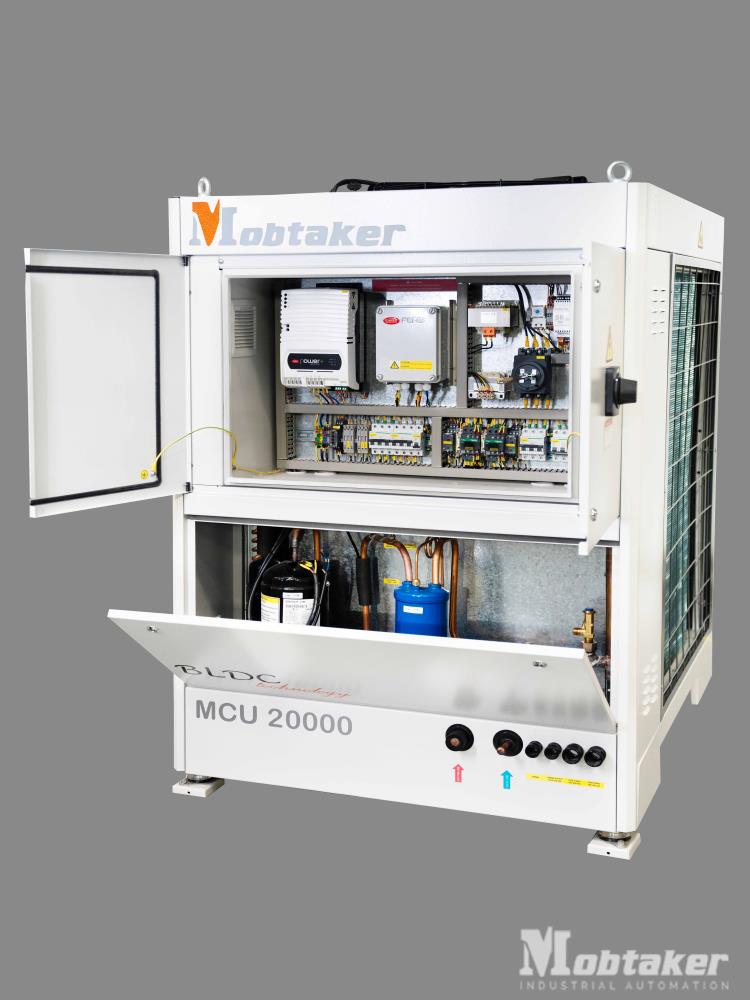

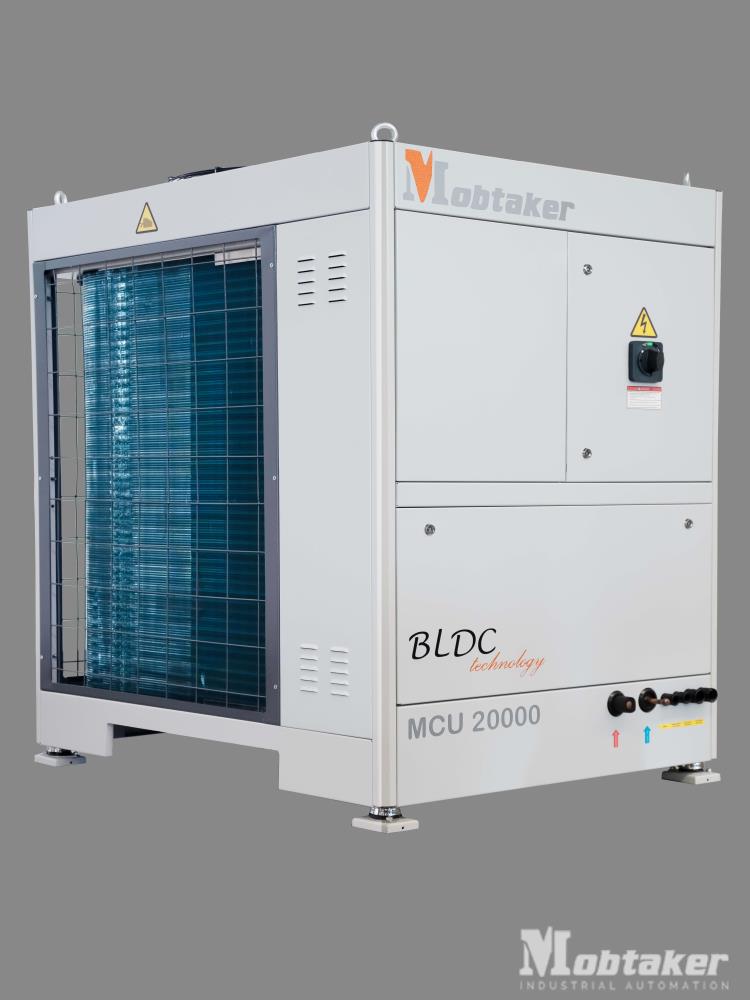

MCU 30000

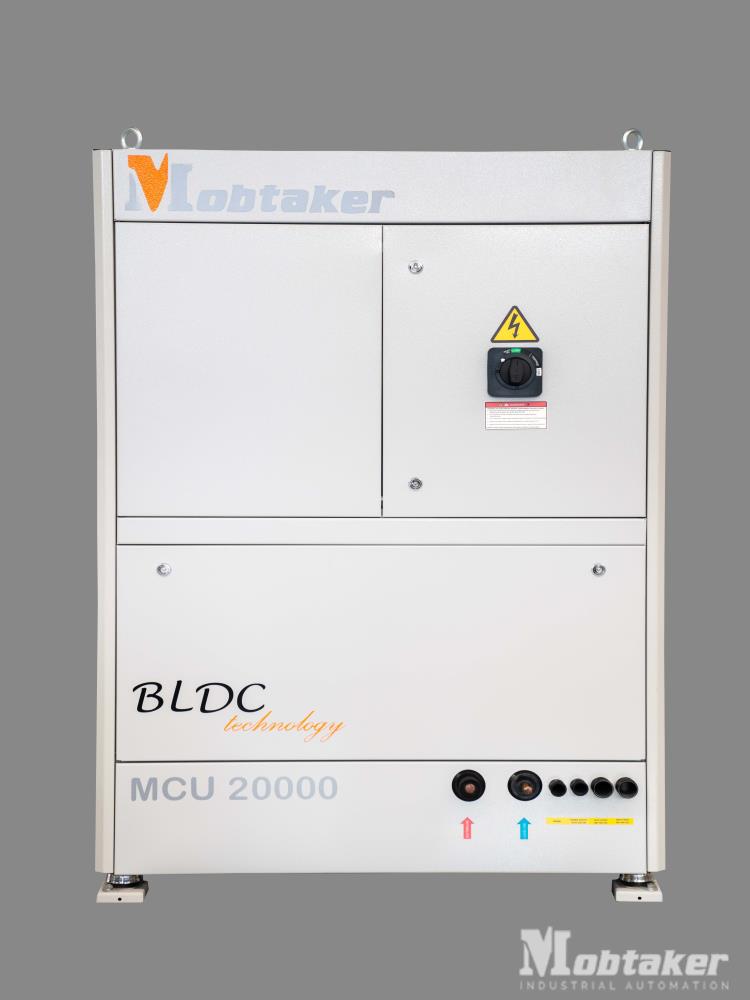

MCU 20000

Model

1530*1050*1351

1530*1050*1351

size (L*W*H)(mm)

8.5

5.8

Maximum power consumption with inrow

V-3P 380

V-3P 380

Voltage (v)

1

1

Number of fans

Axial

Axial

Fan type

BLDC Rotary

BLDC Rotary

Compressor type

169

164

weight (kg)

MCI 30301

MCI 30201

Rated InRow

It should be noted that the device is powered by 380V 3-phase electricity to the condensing unit and the condensing unit uses 220V single-phase electricity to supply the power of the internal InRow unit.

The most important characteristics of MCI inverters

Frame structure made of high strength ST37 metal sheet
InRow structure coated with Electrostatic powder paint (code RAL 9005)
Condensing unit coated with Electrostatic powder paint (code RAL 7035)
Equipped with electronic expansion valve
Equipped with Carel control equipment
Feeding the device using two separate power supply units interconnected by a switch (at the request of clients)
Removing each individual fans from the system even when the system is in operation
High energy efficiency thanks to variable-speed fans of InRow unit and condensing unit
BLDC variable speed compressors used to reduce energy consumption rate, guarantee smooth performance and long life-span of the device
Network connection via Modbus protocol as well as BACnet and SNMP protocols
Network connection via Ethernet and RS485 ports and Rotation of up to 16 InRow units
Operation in 3 different control modes (Supply only, Return only and Supply + Return)
separate controller  of the condensing unit in addition to the main controller of the InRow unit
Installation of sensors that give dirty filter alarm sensor (optional)
Installation of drain pan pumps (optional)
Installation of a leak sensor (optional) separated from the float sensor
Equipped with float sensor
No need for 3-phase electricity in indoor data center aisle
Blue Fin coils which are reputed for their long lifespan
Installation of compressor within the outdoor condensing unit in order to facilitate maintenance
