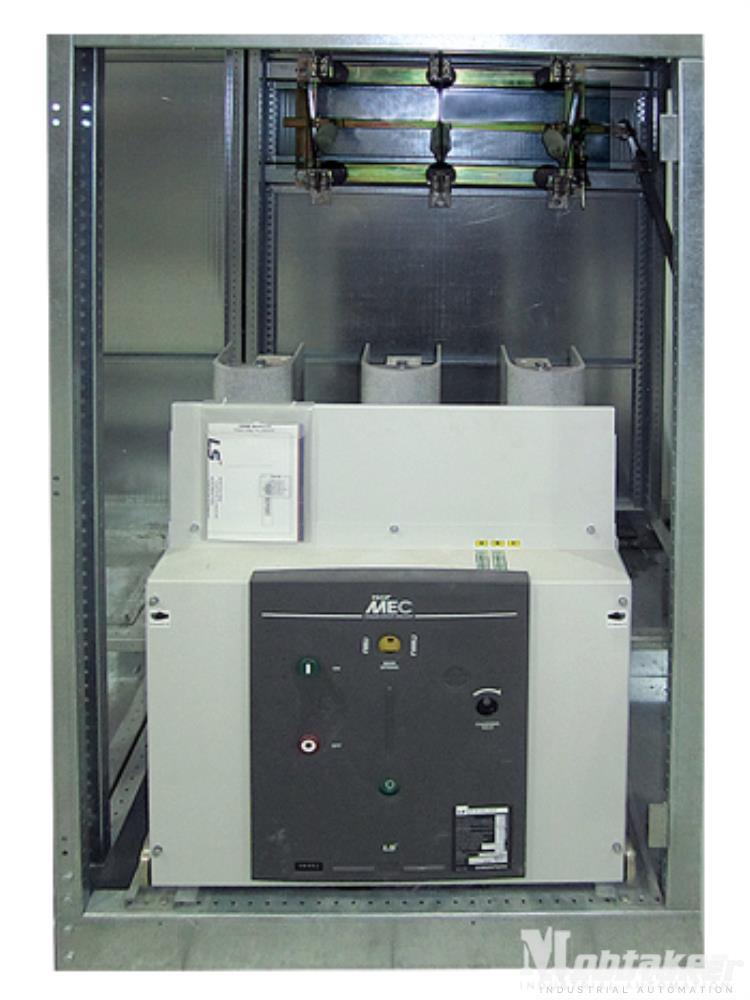

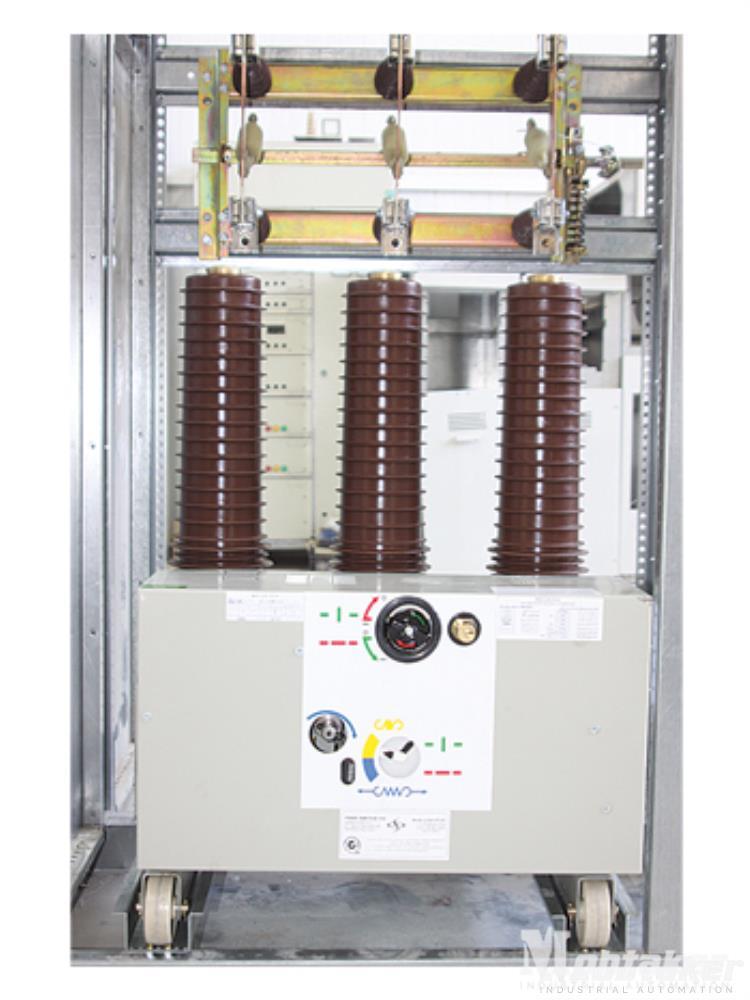

Part Switch Breaker Electrical Characteristics

Type Of CB

Rated
Voltage
(KV)

Rated current

Rated
Frequency
(HZ)

Breaking
Capacity
(KA)

Dielectric Test

Impules
(KV peak)

Power
Frequency
(KV rms)

FP 0716 B

7.2

630

50

Up To 18.4

60

20

FP 0731 D

7.2

1250

50

Up To 31.5

60

20

FP 1216 B

12

630

50

16

75

28

FP 1225 D

12

1250

50

29

75

28

FP 2416 B

24

630

50

16

125

50

FP 2425 D

24

1250

50

25

125

50

FP 3616 B

36

630

50

16

170

70

FP 3625 D

36

1250

50

25

170

70

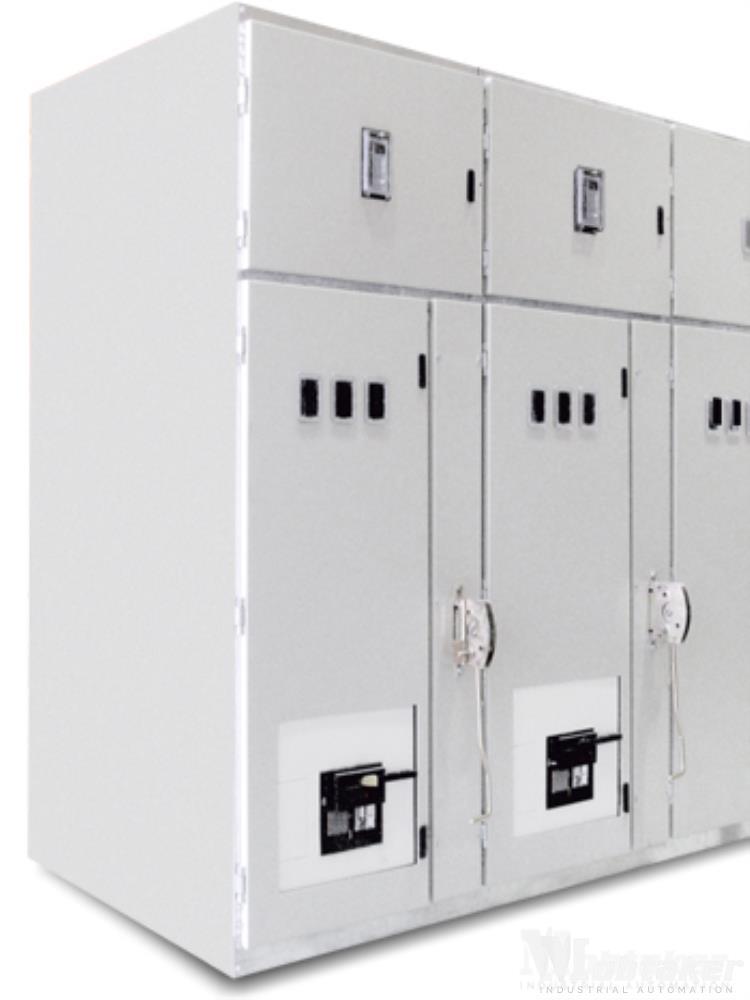

Dimensions of The Panel

Dimensions

width

height

depth

Unit =mm

1200

2200

1300
